Posts Tagged ‘Gears’

Owner Manual Fender Pro Reverb 1972

In Gears on February 26, 2009 at 12:03 pm

Rare! a full copy of the 1972 Owner manual of the Fender Super Reverb and Pro Reverb amplifiers, which is  very light compaired to today’s specs books!

But just good enough to play isn’t it? Click down here:

Fender Pro reverb manual 1972

Fender Pro reverb manual 1972

If you have any other copy of older issue, drop me a mail, Thousand thanks

source: http://www.thevintagesound.com/ffg/

Gears, guitar & Amps used by Joe Pass

In Gears on November 21, 2008 at 11:52 pm

Fender Jazzmaster

Joe Pass

Joe Pass

Joe Pass used to play this guitar during his stay at theSynanon Center in California, where he tried to kick drugs. After 15 months in Synanon Joe Pass recorded Sounds of Synanon in 1961 together with Arnold Ross, another Synanon resident. During his stay Joe Pass didn’t have a guitar of his own, he used this Fender guitar that was owned by the Synanon Rehab Facility.

The Fender Jazzmaster was first introduced in 1958 and was originally marketed at jazz guitarists. The Jazzmaster wasn’t embraced by the jazz musicians however, but it became popular amongst surf rock guitarists.

Gibson ES175

This Gibson guitar, the Es175, was the main guitar of Joe Pass. He got one for his birthday from a guy named Mike Peak in 1963, who saw Joe Pass playing jazz on a solid body (the Fender Jazzmaster).





Gibson ES175

Gibson ES175



Other jazz guitarist who played the Gibson ES175: Jim Hall, Pat Metheny, Wes Montgomery (in the early days), Kenny Burrell


D’Aquisto Guitars
 In 1970 Joe Pass started using a D’Aquisto guitar. The guitar was built specifically for Joe.

Other jazz guitarist who play a D’Aquisto: Jim Hall.

Ibanez

From 1980-90 Joe Pass was under contract with Ibanez. It is said that Joe didn’t really like the Ibanez guitar and didn’t perform on it that much. Most accounts from people in the United States from this time period have Joe playing the D’Aquisto, but many reports from other countries say Joe played the Ibanez. The speculation is that Joe played the Ibanez rather than travel internationally with his D’Aquisto.

Joe's Ibanez

Joe's Ibanez

The Ibanez Joe Pass was discontinued pretty quickly and suffers a reputation for a thin tone due to it’s pickup placement.

Other Guitars

-Gibson L5
-Gibson Super 400









Guitar Amplifiers

Polytone Mini Brute

Polytone Mini Brute







Polytone Mini-Brute Amp

A very compact guitar amp, 110 watts through a 12″ speaker.

Other jazz guitarists who this amplifier: Jim HallHerb EllisGeorge Benson








Fender Amps – Pro Reverb AA165 layout & serial number

In Gears on November 10, 2008 at 9:48 pm

Pro Reverb AA165 (blackface) serial number by year
A00100 to A02700 – 1965
A02700 to A09200 – 1966
A07000 to A10200 – 1967

Pro Reverb AA1265, AB668, AA1069, AA270 (silverface)
A10000 to A10500 – 1967
A10500 to A12000 – 1968
A12000 to A13300 – 1969
A13400 to A14500 – 1970
A14500 to A15000 – 1971
A15000 to A15600 – 1972
A15600 to A17200 – 1973
A17200 to A19700 – 1974
A19700 to A20000 – 1975
A20000 to A21500 – 1976

from Greg Galiano

More serial numbers and productions data at 20th Century Guitar Mag

(or here:  Dating Fender Amps )

If you need to change your Tubes…You’ can find all Tube Amps Overhaul Kits at Torres Engineering

Blackface schematics:

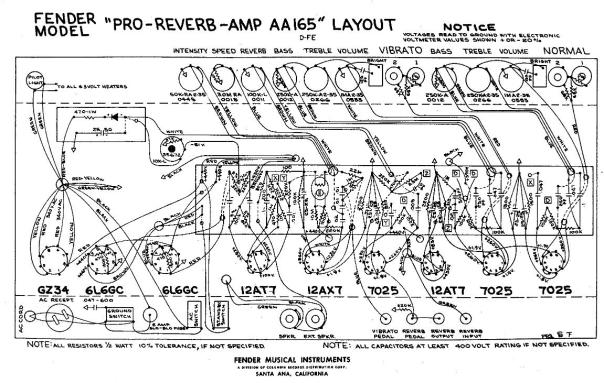

layout-pro_reverb_aa165gif
